Team Associated RC10B7D Team 1/10 2WD Electric Buggy Kit (ASC90042)

Out of stock

Part#
ASC90042
(No reviews yet) Write a Review
Out Of stock

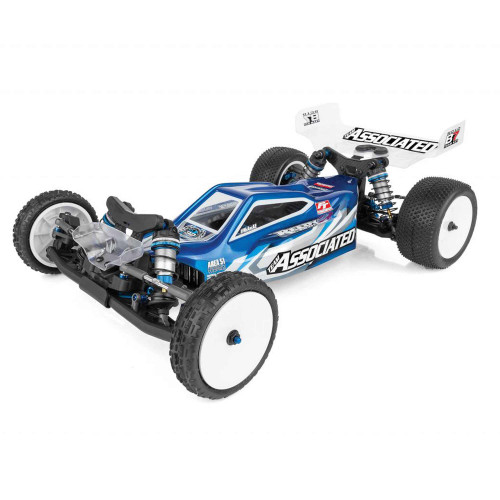

This is the Team Associated RC10B7D Team 1/10 2WD Electric Buggy Kit.

The RC10B7D is the recommended starting kit for those who plan to race on dirt, clay, and some low-grip AstroTurf® tracks. This kit comes equipped with a ball differential and an optimized setup which includes softer springs and lower pack pistons. As with previous generations, the RC10B7D and RC10B7 feature fully interchangeable parts between the two kits, which allows the user to pick and choose what configuration they want to use depending on track conditions. Both versions come with the same durability, speed, and lineage of a champion that is found in any Team Associated race platform.

Features:
5-gear laydown transmission with low profile motor mount moves weight of motor closer to the center of the car
Long-arm suspension geometry improves grip and predictability in all conditions
KPI adjustable steering and caster blocks allows for fine tuning steering feel. Three options are included in the kit.
Vertical front outer ballstud allows fine tuning of roll center, camber gain, and link length
Height adjustable aluminum front bulkhead allows for further tuning of front roll center
Standard and HRC (High Roll Center) rear hubs included
Highly adjustable battery holder with thumb tabs allows for easy battery removal and fine tuning of weight bias
7075-T6 aluminum chassis with increased departure angle and optional weight plate pockets
HD 69mm CVA bones and differential outdrives for improved durability
Lightweight molded servo mount
One-piece rear wing mount improves durability
New 7-inch rear wing and 2.5-inch front wing
Low-profile body included
Shock tower covers front and rear
3.5mm turnbuckles and ballcups

Specifications:
Drive: 2WD
Power Source: Electric
Terrain: Off-Road
Body Style: Buggy
Scale Size: 1:10 Scale
Assembly Level: Kit
Length:390mm (15.35in)
Width: varies with user selected options
Wheelbase: varies with user selected options
Weight: varies with user selected options
Internal Gear Ratio: 2.60:1

Needed to Complete:
1:10 scale 540-size electric RC car motor
1:10 scale radio control electronic speed control
7.4V-7.6V 2S LiPo with "shorty" battery dimensions (standard or low-profile height)
Battery charger (compatible with chosen battery)
2 channel surface transmitter and 2 channel receiver
Steering servo
Lexan specific spray paint for body
1:10 scale off-road wheels and tires
Other helpful items: Silicone Shock Fluid, Silicone Diff Fluid, Body Scissors, Reamer, Wrench Set, Hobby Knife, Needle Nose Pliers, Wire Cutters, Soldering Iron, Calipers
