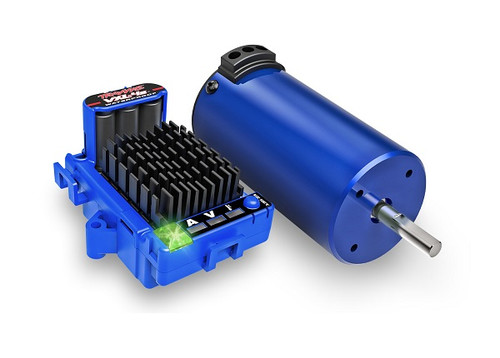

The Velineon® 4s brushless power system takes your RC experience to the extreme with the monstrous torque of the Velineon 540XL brushless motor and innovative VXL-4s™ ESC. New High-Resolution Linear Braking provides the most intuitive and precise braking ever offered by Traxxas. Outfitted with built-in telemetry and a selectable 6.0 or 7.4-volt BEC, the VXL-4s transforms 14.8 volts of LiPo power into staggering performance. An extra large heat sink allows the ESC to run cooler for extended run times.
The Velineon VXL-4s features a high-voltage BEC with a 6.0 volt setting for standard servos and powerful 7.4 volt setting for high-performance servos like the Traxxas 2280, 2255, and 2250. Powerful brushless servos like the High-Torque 600 gain over 20% more torque at 7.4 volts with faster transit times. Selecting a voltage is quick and easy using the Traxxas Link app.
Velineon VXL-4s High-Resolution Linear Braking is a patent-pending Traxxas innovation that delivers next-level smoothness and precision. The High-Resolution communication loop allows instant response to the driver’s input for powerful and intuitive linear braking feel. From feather touch speed correction to full-power late braking to overtake on the inside line of a corner, the driver stays fully connected and in control for a competitive edge on the track. The optional Traxxas Link app adds easy control over brake force to tune for different needs and conditions.
Features:
VXL-4s Electronic Speed Control
2s–4s LiPo compatible
Real-time telemetry via Traxxas Link™
Selectable 7.4-volt high-voltage BEC
High-Resolution Linear Braking
More precise than conventional systems
Superior brake modulation on the track
Large heat sink accepts accessory cooling fan (3340)
Three programmable drive profiles
Sport Mode - Forward / Brake / Reverse
Race Mode - Forward / Brake
Training Mode™ - 50% Forward / Brake / 50% Reverse
Traxxas EZ-Set® one-button setup
Integrated protection circuits
LED status lights
Velineon 540XL Brushless Motor
Long format brushless motor
4-pole 2400 Kv
5 mm output shaft
Low-maintenance design
VXL-4s Compatibility Chart:
Direct Bolt-In Installation for These Models
Raptor R™
Rustler® 4X4
Stampede® 4X4 (Only 3445 ESC required)
Requires 9030 receiver box
Jato 4X4 BL-2s
Rally 4X4
Slash 4X4
Recommended Upgrades
Extreme Heavy-Duty Upgrade Kit (9080)
Center differential (6780 or 6780A)
Battery expansion kit
Spring and suspension tuning for additional weight
New 5 mm pinion and spur gears to compensate for lower motor kV rating
Recommend 6-7 tooth increase on pinion gear
Specifications:
Input Voltage: 2s-4s LiPo (7.4 V - 16.8 V)
Case Size: 2.40″ (61 mm) x 2.09″ (53 mm) x 1.42″ (36 mm)
Weight: 4.20 ounces (119 g)
BEC Voltage: Selectable 6.0 or 7.4 volts
Motor Connectors: Traxxas 6.5 mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
Thermal Protection: Two-stage thermal shutdown
Ports: RX input, auxiliary fan connector
