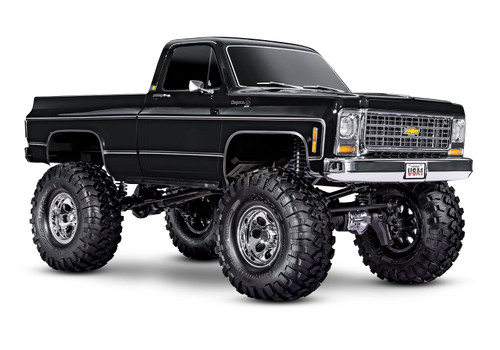

Traxxas elevates scale adventure with the lifted TRX-4® Chevrolet® K10 High Trail Edition. Thanks to its factory-installed Long Arm Lift Kit and oversize tires, the highly detailed K10 replica body stands over an inch taller than our standard TRX-4. The K10’s extended wheelbase further enhances the TRX-4’s already legendary off-road capability for even more fun on the trail. The TRX-4 High Trail Edition is the perfect vehicle for the driver who wants it all: extreme all-terrain capability, stunning scale looks, and Traxxas-Tough™ durability.

Get ready for extreme scale adventure with the lifted TRX-4® Chevrolet® K10 High Trail Edition pickup. The highly detailed K10 replica body stands over an inch higher than a standard TRX-4 thanks to its factory-installed lift kit and oversize 2.2” tires. K10’s extended wheelbase further enhances TRX-4’s already legendary off-road capability for even more fun on the trail. Storm mud bogs, cross deeper streams, and clear bigger obstacles than ever before with the TRX-4 High Trail Edition K10.

Features:
Officially Licensed 1979 Chevrolet K10 Pickup Body
Scale details: grille, chrome bumpers, side mirrors, door handles, and wipers
LED-ready headlights and tail lights
Authentic decal sheet
Full Nylon composite wheel wells and floor pans

Clipless Body mounting
Clipless design for smooth body appearance
Rugged internal body cage for added rigidity
Body details mount directly to internal frame

Trail-tuned XL-5™ HV Waterproof Electronic Speed Control
Fully waterproof design
Five drive profiles
Sport Mode — forward / brake / reverse
Race Mode — forward / brake / no reverse
Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
Traxxas EZ-Set® one-button setup
Large, efficient heat sink
Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3S LiPo (7.4–11.1V)
Two stage low voltage protection (LVD)

Titan 550 Motor
Powerful Titan™ 21T reverse rotation motor with internal cooling fan
Precision, preset gear mesh adjustments
Motor retention separate from gear mesh

Portal Axles
Increase ground clearance
Eliminate torque twist
Steel gears
Improve axle geometry and reduce strain on driveshafts

Drivetrain
Full-time shaft driven 4-wheel drive
Tough 6 mm stub axles
Steel front CV driveshafts
Hardened steel rear axle shafts
Remote locking steel gear differentials with cable-actuation
Steel gear transfer case

Factory-Installed Long Arm Lift Kit
Increases ground clearance over 1”
Maintains precise steering geometry
Accommodates oversize 2.2” wheels and tires

TQi™ 2.4GHz Radio System
4-channel transmitter
5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
Compatible with optional TQi Traxxas Link Wireless Module (#6511) to access full Traxxas Link app functionality (sold separately)
Automatically stores and loads settings for up to 30 Traxxas Link enabled models
Exclusive Cruise Control feature for extended trail driving
Adjustable steering and throttle sensitivity (exponential)
Adjustable steering and throttle endpoints
Patented waterproof receiver box with easy-access plug

Extended Wheelbase
Long 336 mm wheelbase for improved stability
Full-length 1.5 mm thick steel frame rails
Bumpers adjust fore and aft
Rugged rock rails adjust for width
Wire routing clips integrated into frame rails

Innovative Battery Compartment
Hinged battery strap allows quick and easy battery access
No pins to lose
Accommodates different height batteries
Accepts full-size long battery packs
Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)

Transmission
Two speed high/low range with remote shifting
Dual horizontal shafts
Twin friction plate slipper clutch
Easily removed for servicing

Steering
Chassis mounted 2075X metal gear digital servo
Superior 45° steering angle
Direct steering (no servo saver)
Steering geometry corrected for bump steer

Suspension
Front — 3 link with panhard
Rear — Triangulated 4 link
Heavy-duty rod ends with steel hollow balls
5 mm diameter steel link rods with 4 mm threaded ends

Extended Aluminum GTS Shocks
Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
Extra-long aluminum bodies for greater articulation
Silver-anodized aluminum bodies
Threaded bodies with collars easily adjust ride height
Silky smooth damping for the toughest trails
O-ring cap seal and dual X-ring shaft seals

Oversize Wheels and Tires
2.2” 8-hole chrome mag wheels with hub inserts
Pre-mounted 2.2” Canyon Trail tires with trail-tuned foam inserts
Trail tuned S1 rubber compound
12 mm steel hex
Sealed Ball Bearings
Hex hardware with Rust-Resistant Black Oxide Coating
Requires Battery and Charger (Sold Separately)

Specifications:
Length: 22.20 inches (563mm)
Front Track: 10.60 inches (270mm)
Rear Track: 10.60 inches (270mm)
Center Ground Clearance: 4 inches (99mm)
Weight (w/o battery): 7.38lbs (3.35kg)
Height (overall): 10.89 inches (277mm)
Wheelbase: 13.23 inches (336mm)
Approach Angle: 70°
Departure Angle: 52°
Breakover Angle: 67°
Front Shock Length: 4.33 inches (110mm)
Rear Shock Length: 4.33 inches (110mm)
Front Wheels: 2.2 x 1.34 inches (56 x 34mm)
Rear Wheels: 2.2 x 1.34 inches (56 x 34mm)
Front Tires: 5.3 x 2.14 inches (135 x 54mm)
Rear Tires: 5.3 x 2.14 inches (135 x 54mm)
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: 2-speed Hi-Lo, Remote Shifting
Gear Pitch: 32P
Differential Type: 4 Gear, Remote Locking
Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQi™ 2.4 GHz 4-Channel Transmitter
Receiver: 6533
Skill Level: 1
Battery Tray: 158.75 L x 47 W x 23/26mm H

Includes:
(1) Traxxas TRX-4 with K10 Body
(1) TQi 2.4 GHz 4-Channel Transmitter
Maintenance Tools

Needed to Complete:
(4) "AA" Batteries (for transmitter)
(1) NiMH Battery (4-7 cell) or LiPo Battery (2S/3S)
(1) Compatible Battery Charger
