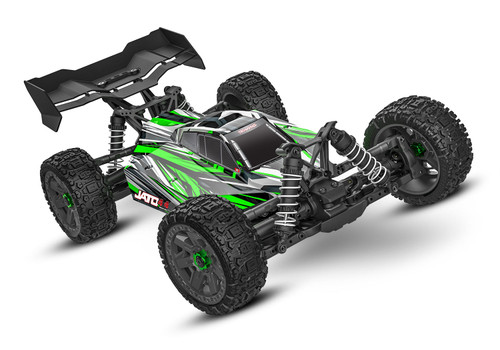

Jato® 4X4 delivers agility and toughness in a platform that is both fun and rewarding to drive. The low-CG chassis uses performance-optimized suspension geometry and optimal weight distribution to deliver quick turn-in and precise handling dynamics. As a result, Jato 4X4 handles with the precision of a race buggy and the durability of the Traxxas' toughest off-road trucks.

BL-2s Brushless System
The BL-2s™ brushless power system ramps up the fun with up to 60% more speed and faster acceleration than comparable brushed power systems. Improved efficiency, high-speed ball bearings, and an internal cooling fan allow Jato 4X4 to run battery after battery for all-day fun. With no brushes to wear out, the BL-2s 3300 Kv is long-lasting and requires virtually no maintenance.

Next-Level Toughness
Factory-installed Extreme Heavy Duty Upgrade components give Jato 4X4 the superior strength and durability normally associated with Traxxas’ toughest off-road trucks. An ultra-rigid T-Bar reinforces the chassis with Extreme HD shock towers to support the suspension. Huge Maxx-Duty® driveshafts transfer every ounce of the motor’s torque to the wheels with unsurpassed strength.

Track-Ready Handling
Jato 4X4 sits low and wide, concentrating its weight below the driveshafts for exceptional handling and perfect weight distribution. Extra-long GTR shocks in the front and rear maximize traction by keeping Jato 4X4’s new Sledgehammer® buggy tires in constant contact with the ground. Add the optional sway bar kit (sold separately) for ultra-flat cornering and game-changing on-track performance.

Clipless Buggy Body
Jato 4X4’s form-fitted clipless body cuts through the wind and eliminates the parachuting effect for stable performance at speed. Tough clipless side latches hold the body securely in place but release in just seconds for fast battery swaps. Jato 4X4 incorporates the high-downforce wing from Sledge® to keep its chassis planted with rugged rollover protection as an added benefit.

Features:
Clipless Body
Holds tight for intense action
Quick and easy removal
High-downforce wing

Extreme Heavy Duty Upgrade Kit Installed
Strengthened C-hubs, axle carriers, and steering blocks
Heavy duty one-piece camber & toe links
Maxx-duty driveshafts
Oversize diameter
6 mm axles
17 mm hex hubs
Aluminum wheel nuts

TQ™ 2.4 GHz Transmitter
Full-size 2-channel transmitter
All-day comfort with precise long-range control

Steering
Chassis-mounted 2075 servo
Dual bellcrank design with integrated servo saver

BL-2s™ Waterproof Electronic Speed Control
Heat sink accepts accessory cooling fan (3340)
Three Programmable Drive Profiles
Sport Mode - Forward / Brake / Reverse
Race Mode - Forward / Brake
Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
Traxxas EZ-Set® one-button setup
Built-in two-stage low-voltage detection for LiPo batteries
NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
LiPo battery packs: 2 cells (7.4 volts)

3300 Kv Brushless Motor
Integrated cooling fan
Low-maintenance design
Efficient ball bearings
3300 Kv

Chassis
T-Bar chassis stiffener
Modular composite tub design
Secure battery hold-down latch
Low-CG design
High-clearance skid plate

Suspension
Heavy duty shock towers
Reinforced shock mounts
Double-shear camber link connections
Heavy duty suspension arms
Oil-filled GTR shocks
Threaded shock collars for precise ride height adjustment
Large oil capacity for consistent damping
White powder-coated springs

Driveline
Full-time shaft-driven 4-wheel drive
Sealed steel gear front and rear differentials
Heavy-duty slipper clutch
Large 32-pitch spur gear

Wheels and Tires
3″ gray buggy wheels
Sledgehammer® tires

Sealed Ball Bearings
Hex hardware with Rust-Resistant Black Oxide Coating

Specifications:
Length: 20.4 inches (517 mm)
Front Track: 12 inches (305 mm)
Rear Track: 12 inches (305 mm)
Ground Clearance: 1.02 inches (26 mm) (center)
Weight (no battery): 5.2 pounds (2.36 kg)
Height (overall): 7 inches (179 mm)
Wheelbase: 12.6 inches (320 mm)
Shock Length (front): 3.98 inches (101 mm) - XX-long
Shock Length (rear): 3.98 inches (101 mm) - XX-long
Speed Control: BL-2s™ electronic speed control
Motor (electric): BL-2s™ 3300 Kv sensorless brushless
Overall Drive Ratio: 12.80:1
Differential Type: Hardened steel bevel, sealed, limited slip
Gear Pitch: 32
Chassis Structure/Material: Composite tub
Drive System: Shaft-driven 4WD
Steering: Dual-bellcrank with integrated servo saver
Tires: Sledgehammer® with foam inserts
Tire Diameter: 4.5 inches (114 mm) (front and rear)
Wheels (front/rear): 3″ Gray buggy wheels
Wheel Diameter: 3″ inches (78 mm)
Radio System: TQ™ 2.4 GHz (2-channel)
Servo: Waterproof digital 2075 servo (125 oz-in torque)
Skill Level: 1
Battery Compartment (L/W/H): 165 mm x 50 mm x 23/26 mm

Needed to Complete:
(1) 2S LiPo or 6-7 Cell NiMH Battery
(1) Compatible Battery Charger
(4) AA Batteries for Transmitter
