Tekin

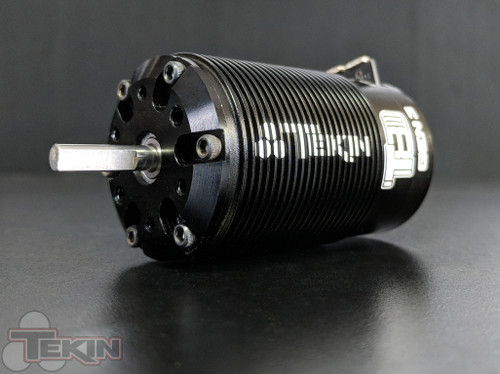

Tekin Redline T8 GEN3 4038 1/8 Truggy Competition Brushless Motor (2250kV) (TEKTT2345)
$275.00
$164.99(0)
Tekin's T8 GEN3 racing motors are racing performance defined. With a stronger rotor, new stack features and lower resistance the T8 GEN3 motors are a versatile, unmatched and advanced power delivery system. Relentless amounts of torque and power are at your disposal with industry-leading RC motor technology. Coupled with an RX8 GEN3 utilizing Tekin's D2 Dual Drive Technology, the T8 GEN3 packs efficiency and precise control through the entire RPM range. Maintain Pro- level control of your chassis no matter the situation on the track with a T8 GEN3. Pair the T8 GEN3 with an RX8 GEN3 Speed Control for the ultimate in 1:8 scale racing power systems.
Features:
4 Pole 12 Slot High Torque Motor Design
1:8 Scale Chassis Specific
ROAR Legal
CNC Machined 6061-T6 Billet Aluminum Ribbed Heat Sink Can
Neodymium Sintered Magnets
Precision Engineered for Maximum Energy Conversion
High Purity Copper Windings Maximize Conductivity and Efficiency
Low Resistance, High Power Solder Tabs
Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems
Anodized End-bell plates maximize corrosion and wear resistance
High RPM ABEC-5 Precision Bearings
Oversized Front Bearing adds Durability
Rebuild-able Design
Designed to be paired with the RX8 GEN3 ESC
Specifications:
Voltage Limit: 2000KV - 4S LiPo
Weight: 4038 Truggy 13oz / 368
Shaft Dimensions: 5mm (.196") x 19mm
Motor Diameter: 40mm / 1.57" 42mm / 1.65" Including Fins
Motor Length: 4038 Truggy 77mm / 3.03"
Max Operating Temperature: 180°F / 82°C
Max RPM: 65,000
Bearing Dimensions: Front: 5x16x5mm/Rear: 5x11x5mm
Rotor Size: 18.5mm
Rebuildable: Yes
