Castle Creations

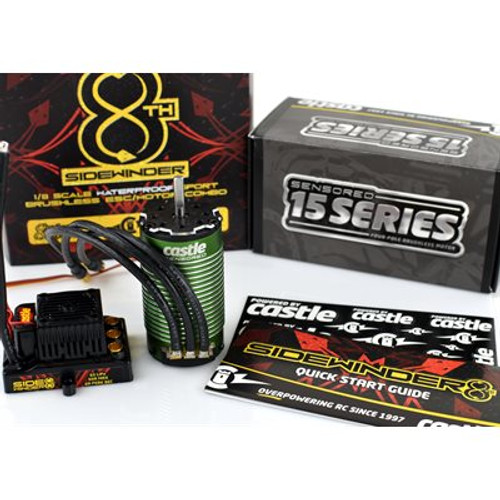

Castle Creations Sidewinder 1/8 Brushless ESC Combo w/1515 V2 Sensored Motor (2200kV) (CSE010-0139-02)
$214.99
(0)
This is the Castle Creations Monster 2 1/8 (25V) Waterproof ESC Combo w/1515 V2 Motor (2200kV).
Castle Creations' introduction of the Mamba Monster was a break-through moment for R/C modelers wanting to experience what seemed to be unobtainable. Brute power and sheer stamina have made this our legacy "power up" for popular 1/8th scale buggies, truggies and on road vehicles and 1/10th scale monster trucks.
The Mamba Monster 2 ESC is capable of 2S LiPo to a maximum of 6S LiPo and is waterproof, which means you can run your vehicle through the morning dew, across the soggy snow or just about anywhere else you'd be interested in running a 1/8th scale RC buggy or truck.
The Mamba Monster 2 includes a coupon for a free Castle Link USB device. This allows access to the full programming suite of adjustable settings that tune and tweak your vehicle to your preferences, resulting in an incredible RC driving experience. This combo includes the Mamba Monster 2 controller and the recently updated Castle 1515-2200Kv V2 sensored motor (Sensored capabilities of the motor cannot be utilized with the Mamba Monster 2).
ESC Features:
Adjustable Internal BEC: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Factory equipped (30mm), fully removable cooling fan
Waterproof design allows for use in nearly any environment
LED error codes for common error conditions
Convenient transmitter programming for nine common adjustable settings
Full compatible with the Castle Link Programming Suite or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (sold separately)
Proudly Designed, Assembled and Supported in Olathe, KS USA
Backed by Castle Creations' 1 YR WARRANTY
Motor Features:
Input Voltage range: 2s-6s LiPo
Redesigned rotor and stator assemblies.
Reduced magnetic cogging, producing less residual drag brake.
Increased efficiency, resulting in lower temperatures and longer run times.
Smoother start-up, reducing cogging or stuttering when starting from a stop.
Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
High-Performance 0.2mm Steel Lamination Stacked Stator
Oversized, low-resistance, gold-plated solder tabs
Sensor board with High Quality Temperature-Stabilized Sensors
T6 Aluminum CNC Machines Front/Rear End bell
Proudly Designed and Supported in Kansas, USA.
Backed by Castle Creations' 1-YEAR WARRANTY
ESC Specifications:
Input Voltage Range: MIN: 2S LiPo; MAX: 6S LiPo (25.2V)
BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Size: Length: 2.09" (53mm); Width: 1.93" (49mm); Height: 1.44" (36.4mm)
Weight (with no battery connector): 3.92 oz. (111.g)
Connectors: 6.5mm female bullets for motor connection.
Items Needed for Operation: Battery Connector required; Deans Ultra Plugs, Traxxas Power Connectors, E-Flite EC5, or 6.5mm Castle Connectors are recommended.
Telemetry Link Capable: No
Motor Specifications:
Input Voltage Range: MIN: 2S LiPo; MAX: 6S LiPo Kv: 2200
Max. RPM: 60,000
Motor Size: Length: 2.96" (75.18mm)
Diameter: 1.57" (39.98mm); Shaft size: Diameter: 5mm, Length: 20mm
Weight (w/wires): 15 oz. (452.2g); 380g without wires.
Mounting Hole Specifications: 3mm and 4mm screw holes @ 1" (25.4mm) spacing.
Connectors: 6.5mm male bullets.
Includes:
(1) Mamba Monster 2 ESC
(1) 1515-2200kv V2 sensored* brushless motor
(1) Coupon for free Castle Link USB adapter
(1) Driver's Ed and Quick Start Guide
(1) Decal sheet
