Castle Creations is proud to announce our new flagship surface product, the MAMBA X EXTREME 1:10 SCALE WATERPROOF ESC. We at Castle wanted to address three main concepts while designing a new ESC for the modern day RC enthusiast; VERSATILITY, RELIABILITY, and PERFORMANCE. These are the pillars of the Mamba X design and the driving forces behind the feature-packed controller.

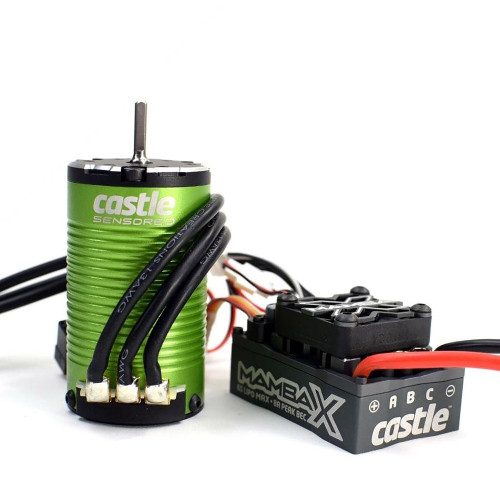

The Mamba X is extremely versatile, capable of powering a wide variety of applications ranging from 2S to 6S and vehicles ranging from 1/10th scale to 1/8th scale*.The Mamba X with 1415 2400kv sensored motor with 5mm shaft is the perfect combo for 1/10th scale 4WD short course trucks and rock racers weighing up to 6.5lbs and running on 3s or 4s LiPo. It will have huge amounts of torque, low temperatures, and incredible speed making this the perfect combo for hardcore bashing and driveshaft snapping power.

Features:
ESC voltage range 2S-6S
1415-2400Kv 5mm shaft Sensored Motor
Waterproof
8A Adjustable BEC (5.25V-8.0V)
Data-logging
Rugged CNC Aluminum Case
Castle Link Programming Support
Convenient Transmitter Programming
Auxiliary Wire Functionality for "on-the-fly" adjustments
SmartSense™Technology
Integrated Capacitors
Removable 30mm Cooling Fan
Integrated 4mm Bullet Connectors
12 AWG Power Wires
Waterproof Switch
Audible Alerts and LED Alerts for easy diagnoses of common issues
ROAR Certified ESC
RECON G6 Certified ESC

Technical Specs:
ESC:
Input Voltage Range: MIN: 2S LiPo MAX: 6S LiPo (25.2V) (4s maximum with included 1415 -2400kv motor)
BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Operating Environment: Waterproof* design allows for use in nearly any environment.
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes
Cooling Fan: Yes, factory equipped (30mm), fully removable
Size: 2.14x1.39x1.18" (54.4x35.2x30.0mm)
Weight (with wires): 3.56 oz. (101g)
Connectors: 4.0mm female bullets for motor connection.
Items Needed for Operation: Battery Connector required
Application Guidelines: Intended for up to 4s (25.2 Volt) operation in vehicles weighing less than 9bs/4kg
Max. Recommended Vehicle Weight: Less than 9bs/4kg, with batteries, ready-to-run.
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free link included in package) and freely downloadable Castle Link Windows software
Telemetry Link Capable: Yes

Motor:
Input Voltage Range: 3-4S LiPo
Kv: 2400
Max. RPM: 75,000
Size: Length: 69.5mm Diameter: 36mm
Weight (w/wires): 319g / 11.3oz
Shaft Size: Length: 21mm Diameter: 0.197" (5mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional
Connectors: 4mm male Castle Bullet Connectors
Application Guidelines: 2WD and 4WD Short Course trucks weighing up to 6.5lbs running on a 3s or 4s LiPo with included 1415 - 2400kv sensored motor.
Running Modes: SMARTSENSE™, Sensored, Sensorless

Tech Notes:

Mamba X setups frequently hit 100+ amps in peaks and not all LiPos are created equal. Surge ratings should never be used to determine a pack's suitability for a brushless application. Recommended battery capacity for 1:8th scale vehicles is 5000mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.
Applying voltages higher than 25.2V will cause irreparable damage to ESC.
We recommend a high-current connector designed for high-powered electric systems, rated for 70+ amps. Invest in connector sets made for high-powered electric systems such as our Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs.

Includes:
Mamba X ESC with Sensor Harness
1415-2400Kv 5mm shaft 4-pole 12-slot sensored motor
Coupon for free Castle Link USB
Mamba Decals
Driver's Ed and Quick Start Guide
Gearing Chart for Castle Motors
