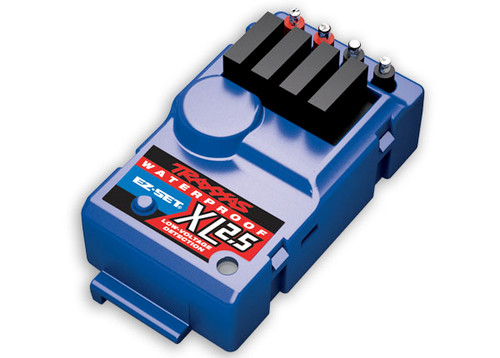

This is the Traxxas TRA3018R XL-5 Waterproof ESC w/Low Voltage Detection
Features
Equipped with the Traxxas high-current connectors for restriction-free current flow
Innovative watersealed design
15-turn motor limit for 540 size motors
12-turn motor limit for 550 size motors
Fully-proportional forward, reverse, and braking control
Programmable with three drive profiles (see below)
EZ-Set® push-button setup
Multi-color LED
Thermal shutdown protection
Efficient, low-loss MOSFET design
High-capacity heat sink
Smooth, high-frequency operation
Easy installation in Traxxas models
Backed by the Traxxas Lifetime Electronics warranty
Overview
Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, Thermal Shutdown Protection, 4-8 cell compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. An exclusive feature on the XL-5 is the patent pending Training Mode™. This profile reduces the overall power output of the XL-5 by 50% making it easier for young or new drivers to develop their control skills before unleashing full-power operation. The XL-5 is manufactured by Traxxas to ensure the highest level of quality and support. The XL-5 is backed by the Traxxas Lifetime Electronics Warranty.
Patent-Pending Training Mode™
An exclusive feature that places the XL-5 ahead of the pack is the patent pending Training Mode. This feature reduces the overall power output of the XL-5 by 50% making it easier for new drivers to control their model. When they’re ready, simply change profiles to unleash full-throttle action.
Programmable with three drive profiles:
* Sport Mode – Fwd / Brake / Rev
* Race Mode – Fwd / Brake
* Training Mode – 50% Fwd / Brake / 50% Rev
Tech Notes
XL-5 (WATERSEALED) ESC SPECIFICATIONS:
On Resistance Forward: 0.007 Ohms
On Resistance Reverse: 0.014 Ohms
Peak Current - Forward: 100A
Peak Current - Reverse: 60A
Braking Current: 60A
Continuous Current: 14A
BEC Voltage: 6.0 VDC
BEC Current: 1A
Transistor Type: MOSFET
PWM Frequency: 1600 Hz
Profile selection:
Sport Mode: 100% FWD, 100% brakes, 100% REV
Race Mode: 100% FWD, 100% brakes, no REV
Training Mode: 50% FWD, 100% brakes, 50% REV
Single-button setup: Yes, Traxxas EZ-Set®
Specifications
Forward: Y
Reverse: Y
Brake: Y
Input Voltage: 4-8 Cells (4.8 to 9.6 Volts DC)
Motor Limit: 15T (540 size); 12T (550 size)
Length: 2.18 inch
Width: 1.23 inch
Height: 0.61 inch
Weight: 2.44 ounce
Full On Resistance: 0.007 Ohms forward; 0.014 Ohms reverse
Wire Gauge: 14 awg power wires (5 inch); 26 awg input harness wires (9 inch)
