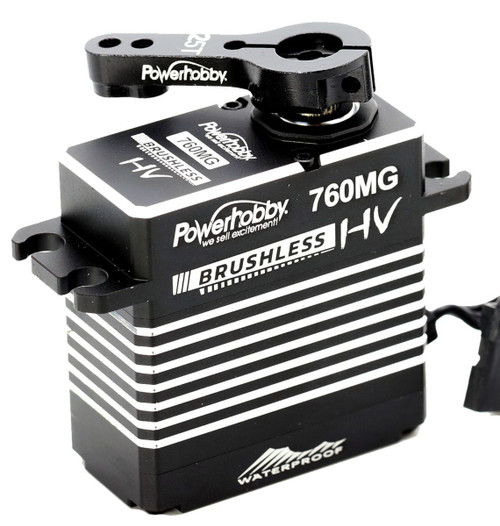

Power Hobby 760MG High Torque Waterproof Brushless Steel Gear Servo / Aluminum Case (PHBPH760MG)
$109.95
(0)
Perfect for scale crawlers, 1/8 1/10 monster truck, 1/8 1/10 2WD and 4WD buggies, as well as 1/8 scale buggies and trucks. In addition, this servo is great choice for boats and other application which require high power, high voltage and waterproof. Waterproof IP67 level up to 1 meter which allow driving in the rain, puddles, snow and mud. High reliable and durable patent gear design. Middle Aluminum case for fast heat disppation. High precision digital control circuitry.
Features:
High performance standard digital servo
Built-in magnetic sensor
Waterproof IP67
High precision steel gears
High efficiency brushless motor
High strength dual ball bearings
Middle Alumiunm case
Ideal for 1/10, 1/8 on road, off road, truck/cars
Specifications:
Operating Voltage: 4.8-8.4 V
Operating speed: 0.124 sec/60° @ 6.0V
Operating speed: 0.11 sec/60° @ 7.4V
Operating speed: 0.10 sec/60° @ 8.4V
Stall Torque: 18kg - 250 oz-in @ 6.0V
Stall Torque: 22kg - 305 oz-in @ 7.4V
Stall Torque: 24kg - 330 oz-in @ 8.4V
Gear: Steel
Motor: Brushless
Size: 40*20*37.2mm (1.57 x 0.78 x 1.46 in)
Weight: 53g
Connector Wire: JR 300 mm
Spline: 25T
